3D scanners

and

Accessories

Directly from the manufacturer

Products

The members of the audiology product family, free Stage one, mono Scan, free Stage twin, duo Scan and ds Production are 3D scanners for digitizing auditory canal impressions, perfectly matched to your requirements. As one of HIMSA member companies smart optics has equipped all scanners with an interface to Noah which allows to integrate the scanner software into your Noah client.

University

Our smart optics university offers you many great and educational videos about the use of our audiology scanners. It’s definitely worth a look.

Here is an example of how a 3D calibration works.

Click here for the smart optics university

Scanner comparison

Device

	free Stage one	mono Scan	free Stage twin	duo Scan	ds Production
Size (W x L x H)	186 × 292 × 348 mm	300 x 367 x 145 mm	186 × 292 × 348 mm	300 x 340 x 135 mm	300 x 340 x 155 mm
Weight	6.5 kg	7.5 kg	6.5 kg	8 kg	10 kg
Connections	USB Power	USB Power	USB Power	USB Power	USB Power
Power supply	100 - 240 VAC, 50/60 Hz	100 - 240 VAC, 50/60 Hz	100 - 240 VAC, 50/60 Hz	100 - 240 VAC, 50/60 Hz	100 - 240 VAC, 50/60 Hz
Housing	PUR integral rigid foam and acrylic glass	Acrylic glass	PUR integral rigid foam and acrylic glass	PUR integral rigid foam	Steel sheet DC01 (1.0330)
Lid
On/Off switch	Toggle switch, rear	Toggle switch, rear	Toggle switch, rear	Pressure switch, green LED, front	Pressure switch, green LED, front
Warranty	36 months	36 months	36 months	36 months	36 months
Extended warranty	12 months	12 months	12 months	12 months	12 months

Measurement

	free Stage one	mono Scan	free Stage twin	duo Scan	ds Production
Accuracy (acc. ISO 12836)	< 9 µm	< 9 µm	< 9 µm	< 9 µm	< 9 µm
Scan time (*)	15 seconds	15 seconds	16 seconds	18 seconds	16 seconds
Number of impressions simultaneously	1	1	2	2	2
Measuring technology	Stripe light triangulation	Stripe light triangulation	Stripe light triangulation	Stripe light triangulation	Stripe light triangulation
Light source	White light LED	White light LED	White light LED	White light LED	White light LED
Resolution of scan quality	adjustable	adjustable	adjustable	adjustable	adjustable
Output data format	PLY, STL, ASCII, MSH	PLY, STL, ASCII, MSH	PLY, STL, ASCII, MSH	PLY, STL, ASCII, MSH	PLY, STL, ASCII, MSH

* Depending on the PC configuration, an additional 3-10 seconds are required for the matching.

Features

	mono Scan	duo Scan	ds Production
Capacitive touch sensor
Status LED
Open scanning
Color texture scan	/ (***)
Quick start function
Annotating and commenting
Various naming methods
Barcode naming (*)
3D calibration (*)
Project export incl. FTP upload	(**)	(**)	(**)

* Accessories needed.
** When using aural Scan 3.2 or earlier, FTP upload is a paid module.
*** You can now order the mono scan in two variants: with or without color texture scan. With the color texture scan, markings on ear impressions can be displayed in the CAD software in true color. Please note that the scanners differ on the hardware side and the color texture scan cannot be retrofitted.

Software

	free Stage one	mono Scan	free Stage twin	duo Scan	ds Production
Scan software	aural Scan	aural Scan	aural Scan	aural Scan	aural Scan
System requirements (Minimum)	Windows 10 64-Bit Dual Core CPU, i3 4 GB RAM USB 3.0 Port approx. 40 GB free hard-disk space Graphics card with 1 GB RAM	Windows 10 64-Bit Dual Core CPU, i3 4 GB RAM USB 3.0 Port approx. 40 GB free hard-disk space Graphics card with 1 GB RAM	Windows 10 64-Bit Dual Core CPU, i3 4 GB RAM USB 3.0 Port approx. 40 GB free hard-disk space Graphics card with 1 GB RAM	Windows 10 64-Bit Dual Core CPU, i3 4 GB RAM USB 3.0 Port approx. 40 GB free hard-disk space Graphics card with 1 GB RAM	Windows 10 64-Bit Dual Core CPU, i3 4 GB RAM USB 3.0 Port approx. 40 GB free hard-disk space Graphics card with 1 GB RAM
System requirements (Recommended)	Windows 11 64-Bit Quad Core CPU, i5 8 GB RAM USB 3.0 Port approx. 80 GB free hard-disk space Graphics card with 2 GB RAM	Windows 11 64-Bit Quad Core CPU, i5 8 GB RAM USB 3.0 Port approx. 80 GB free hard-disk space Graphics card with 2 GB RAM	Windows 11 64-Bit Quad Core CPU, i5 8 GB RAM USB 3.0 Port approx. 80 GB free hard-disk space Graphics card with 2 GB RAM	Windows 11 64-Bit Quad Core CPU, i5 8 GB RAM USB 3.0 Port approx. 80 GB free hard-disk space Graphics card with 2 GB RAM	Windows 11 64-Bit Quad Core CPU, i5 8 GB RAM USB 3.0 Port approx. 80 GB free hard-disk space Graphics card with 2 GB RAM
Compatibility with Noah System
Compatibility with winIPRO

Scope of delivery

	free Stage one	mono Scan	free Stage twin	duo Scan	ds Production
Shipping box includes	free Stage one Object holder Power cable USB cable Scan software with calibration data	mono Scan Object holder Power cable USB cable Scan software with calibration data	free Stage twin 2× object holders Power cable USB cable Scan software with calibration data	duo Scan 2× object holders Power cable USB cable Scan software with calibration data	ds Production 4× object holders Power cable USB cable Scan software with calibration data

Nach der Krise durchstarten!

0%-Finanzierung für Unternehmen in Deutschland

3D-Audiologiescanner:

Sichere Investition
Bis zu 24 Monate Laufzeit
Monatliche Mindestrate ab 156,25 €^*1*2
Qualität made in Germany

zzgl. USt.. Angebot gültig bis zum 31.12.2020. Bonitätsprüfung vorausgesetzt. Es besteht ein gesetzliches Widerrufsrecht für den Verbraucher. 0% Sollzinssatz.
Effektiver Jahreszins 0%.
Fallbeispiel mono Scan: 24 monatliche Finanzierungsraten á 156,25 € (Netto). Nettopreise nach Produkten: mono Scan 3.750,00 €; duo Scan 4.650,00 €; free Stage 4.850,00 €; ds Production 6.990,00 €.

Ein Angebot der smart optics Sensortechnik GmbH, Lise-Meitner-Allee 10, 44801 Bochum. Änderungen, Irrtümer und Zwischenverkauf vorbehalten. Nicht über den Onlineshop bestellbar.

News

smart optics launches two new audiology scanners: free Stage one and free Stage twin

smart optics2023-10-19T15:34:08+02:0018. October 2023|Press Releases Audiology|

BOCHUM – The 67th International Congress of Hearing Aid Acousticians in Nuremberg invites you to the world's largest industry event of its type from October 18 to 20. At stand 3A-213, smart optics will present the latest 3D audiology scanners [...]

Current releases on 28.12.2022

smart optics2022-12-28T13:29:02+01:0028. December 2022|Audiology, Dental|

Our software developers have released a new version of aural Scan just before Christmas. Therefore, the current software releases are: dental Scan 3.8.0 and aural Scan 3.6.0. You can find the release notes and the software downloads in the respective [...]

A colorful start into autumn: smart optics audiology scanners with colored texture scan now available

smart optics2022-10-12T14:45:05+02:0012. October 2022|Press Releases Audiology|

BOCHUM – The 66th International Congress of Hearing Aid Acousticians in Hanover, Germany, is the world's largest industry meeting of its kind from October 12 to 14. At booth 408, smart optics will present the latest generation of its well-known [...]

Products

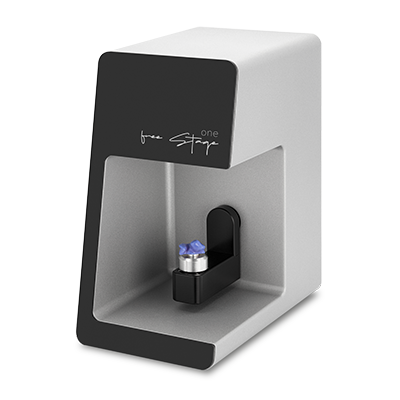

free Stage one

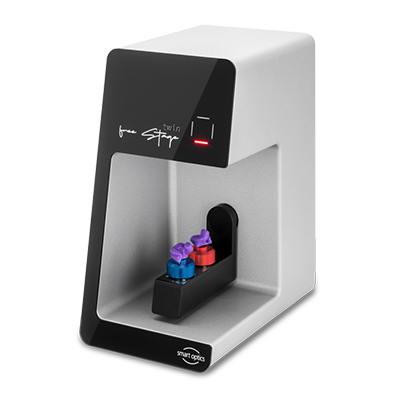

free Stage twin

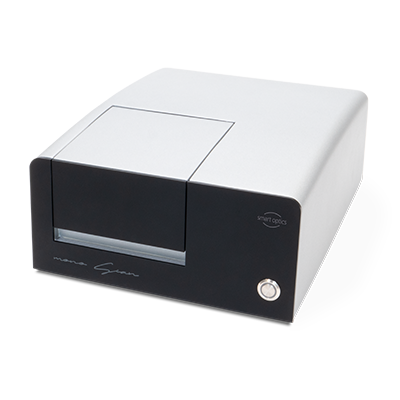

mono Scan

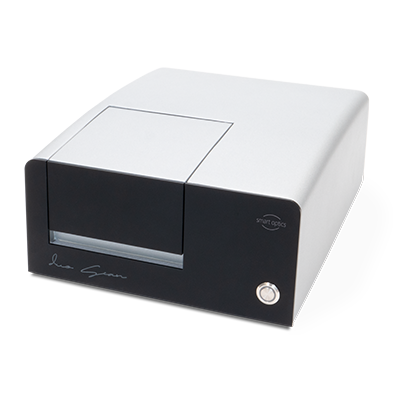

duo Scan

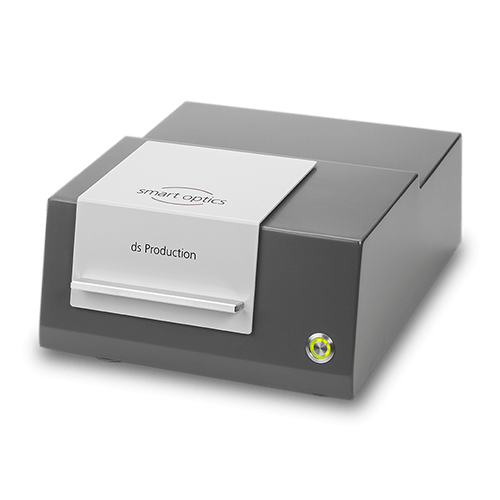

ds Production
